[GUIDE] 8 Disciplines of Problem Solving Methodology

The 8 Disciplines (8D) methodology stands is treated as one of the most effective problem-solving approaches used across industries today. Today, various organizations use 8 Disciplines of problem-solving or 8D method to identify, correct and eliminate recurring problems in a structured manner.

Also called as Ford 8D was originally developed by Ford Motor Company in the 1980s, and today it has become standard practice for quality management and continuous improvement in manufacturing, healthcare, software development, and academic research.

Imaging this – An organization may face various problems such as product defects, attrition, process inefficiency or a research challenge (Which are recurring), 8D methodology provides a clear roadmap to eliminate this problem immediately and fix it for the future as well.

Comprehensive guide provide provides you with all the 8-Disciplines of problem solving method, while also giving you practical examples. We have also included various tools and techniques which can help any organization to implement it.

What is the 8D Problem Solving Methodology?

The 8D methodology (also called Eight Disciplines of Problem Solving) is a comprehensive approach that guides teams through a structured process to identify root causes of problems and implement permanent corrective actions.

The eight steps involved in 8D are –

1. D1: Establish a Team
2. D2: Define and Describe the Problem
3. D3: Develop Interim Containment Actions
4. D4: Identify and Verify Root Causes
5. D5: Develop Permanent Corrective Actions
6. D6: Implement and Validate Corrective Actions
7. D7: Prevent Recurrence
8. D8: Recognize the Team and Close the Process

As mentioned above the list of all the steps, the methodology consists of eight disciplines or steps that teams follow in sequence, though the process allows for flexibility and iteration. Each discipline builds on the previous one, creating a logical flow that moves from problem identification to verification of solutions. Unlike quick fixes that only address symptoms, 8D digs deeper to eliminate underlying causes, preventing problems from recurring.

Although it is worth mention that there is also D0: Preparation and Emergency Response. This step is an initial response to get started with the 8D Process. Although most of the organization start with 8D methodology only after realizing the problem is out of hand.
You may also check this document by Bosch on Quality Management which talks in-depth about the 8D Process in quality management.

Real-world application

A pharma company’s research laboratory experienced inconsistent results in a critical testing procedure. Rather than simply re-running tests or blaming equipment, they assembled a cross-functional team of researchers, technicians, and quality specialists to apply the 8D methodology. Through systematic analysis, they discovered that temperature fluctuations in their lab environment were affecting reagent stability. By implementing proper environmental controls and updating their standard operating procedures, they eliminated the variability and improved research reliability.

History and Evolution of the 8D Methodology

The 8D problem solving method has deep roots in quality management practices. It was formally developed by Ford Motor Company in 1987 as a team-oriented problem solving approach outlined in the “Team Oriented Problem Solving” (TOPS) manual. However, the core concepts date back to the U.S. government’s Military Standard 1520  which was earlier known as “Corrective Action and Disposition System for Nonconforming Material” during World War II.

This method was initially created to address quality issues in automotive manufacturing, the methodology has evolved significantly over the decades. Looking at this concept in 1990s, Ford refined the process by adding the D0 step (preparation and emergency response planning) to the original eight disciplines. This addition recognized the importance of preparation before diving into problem solving.

Throughout the 2000s, the methodology spread beyond manufacturing to industries including healthcare, IT, finance, and academic research. Organizations adapted the framework to suit their specific needs while maintaining its systematic approach. Today, the 8D process integrates with other quality improvement methodologies which we often see such as Six Sigma, Lean, and DMAIC (Define, Measure, Analyze, Improve, Control), offering a versatile toolset for problem solvers across disciplines.

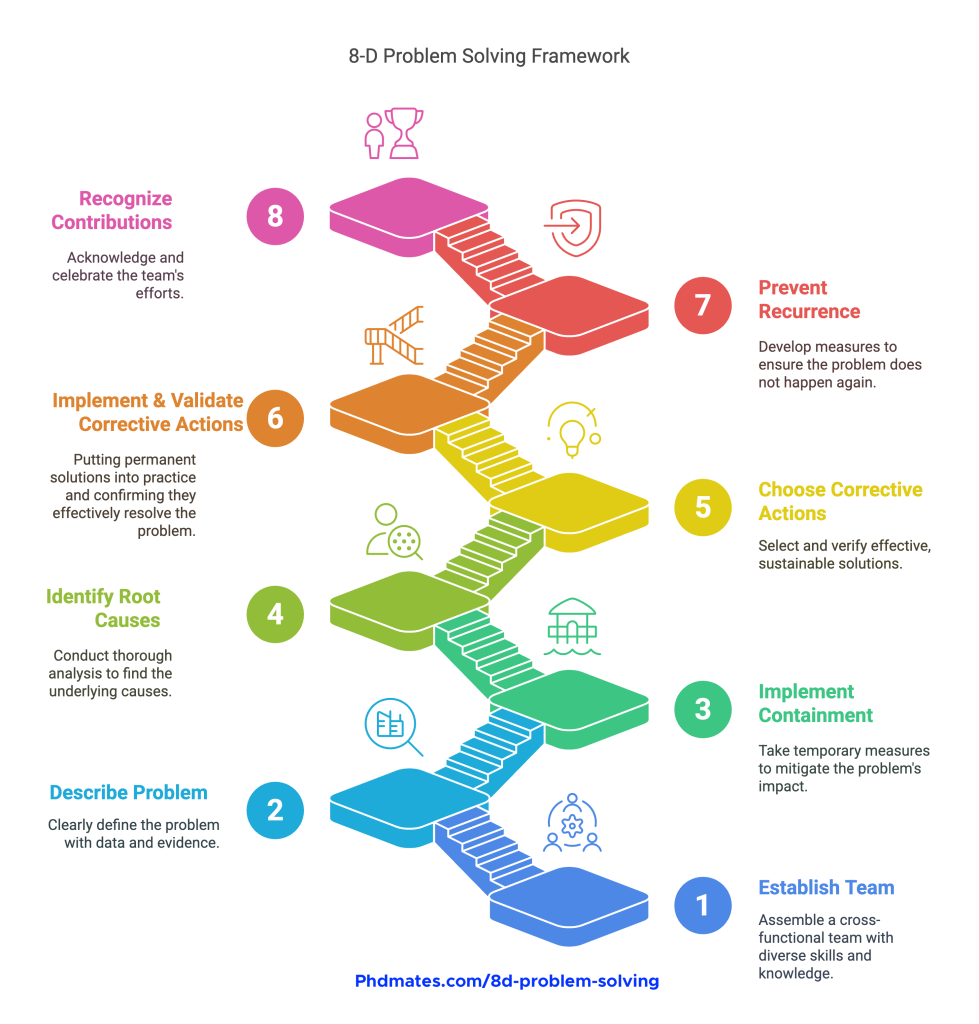

The Complete 8D Problem Solving Framework

The 8D methodology consists of eight structured steps, plus a preliminary step (D0) added in later versions. Each step serves a specific purpose in the problem-solving journey, guiding teams from initial problem recognition to verified, permanent solutions. Let’s explore each discipline in detail.

D0: Preparation and Emergency Response

Before beginning with the formal 8D process, teams must prepare the groundwork and take immediate actions to protect customers or stakeholders from the effects of the problem. This preliminary step, sometimes called D0, involves recognizing the problem exists, assessing its severity, and implementing emergency containment actions if necessary.

During this phase, teams gather preliminary information about the problem, including when and where it occurs, its frequency, and potential impact. They also determine if immediate containment actions are needed to prevent further damage or risk. For example, if a research team discovers contamination in laboratory samples, they might immediately quarantine affected materials while preparing to investigate the source of the contamination.

This preparation stage also involves determining if the full 8D process is warranted. Not all problems require a comprehensive 8D approach—some simpler issues might be addressed through standard procedures or less intensive methods.

Preparation example

A university research department noticed inconsistent results in their DNA sequencing outputs. As part of D0, they:

• Documented when the inconsistencies first appeared and which projects were affected
• Temporarily halted submission of new samples to prevent further questionable results
• Warned research teams using their data about potential reliability issues

• Decided to initiate a full 8D process due to the critical nature of the research and the potential impact on multiple studies

D1: Establish a Team

The first official discipline focuses on forming the right team to address the problem. Effective problem solving requires bringing together people with relevant knowledge, skills, and authority to investigate the issue and implement solutions. The team should be cross-functional, including members who understand the affected processes, have technical expertise, and can authorize changes.

When establishing the 8D team, organizations should consider including individuals who experience the problem directly, as well as those who might have insight into potential causes or solutions. Team size typically ranges from four to ten members, striking a balance between including necessary expertise and maintaining efficient collaboration.

The D1 phase also involves defining team roles and responsibilities. Typical roles include a team leader who coordinates activities, a facilitator who guides the process, technical experts who provide specialized knowledge, and a recorder who documents findings and decisions. Clear roles help ensure the team functions effectively throughout the problem-solving process.

Additionally, the team should establish communication protocols, meeting schedules, and decision-making processes. These organizational elements create a foundation for smooth collaboration as the team works through subsequent disciplines. The team may also identify potential resource needs, including time commitments, equipment, or support from other departments.

D2: Define and Describe the Problem

The second discipline focuses on creating a clear, specific problem statement based on facts rather than assumptions. A well-defined problem guides all subsequent investigation and solution development. During this phase, teams gather data to understand the problem’s scope, impact, and characteristics.

Teams should describe the problem in specific terms, identifying what is happening, where and when it occurs, how often it happens, and its magnitude. Quantifying the problem helps establish a baseline against which improvements can be measured. The problem description should also clarify what is not happening—areas or conditions where the problem doesn’t occur, which may provide clues about potential causes.

Effective problem definition involves using tools such as the “5W2H” framework (What, Where, When, Who, Why, How, How much) to capture comprehensive information. Teams might also create a problem statement that concisely summarizes the issue, affected system, impact, and goal for resolution.

During this phase, teams should collect and organize data that helps characterize the problem. This might include quality reports, customer complaints, process measurements, or comparative analysis between working and non-working conditions. Visual tools such as charts, graphs, or photographs can help document the problem and communicate it to stakeholders.

D3: Develop Interim Containment Actions

The third discipline involves implementing temporary measures to protect customers, users, or stakeholders from the effects of the problem until permanent solutions can be developed. Containment actions isolate the problem, minimize its impact, and prevent its spread while the root cause analysis and corrective actions are underway.

Effective containment measures address immediate concerns without compromising the team’s ability to identify root causes. For example, if a research instrument is producing inconsistent readings, a containment action might involve implementing additional calibration checks before each use, rather than permanently changing the calibration process before understanding why it’s drifting.

When developing containment actions, teams should consider the following criteria:

First, the actions should effectively control the problem and prevent further impact. Second, they should be verifiable, with clear ways to confirm the containment is working. Third, containment should be manageable with available resources and sustainable until permanent solutions are implemented. Finally, the actions should not interfere with the investigation or mask symptoms needed to identify root causes.

Teams should document all containment actions, including implementation dates, responsibilities, verification methods, and any impacts on normal operations. This documentation helps ensure consistent application of containment measures and provides information that may be useful for developing permanent solutions.

Containment example

A research institution discovered that some published data tables contained calculation errors due to a flaw in their analysis software. While investigating the root cause, they implemented these containment actions:

• Created a verification team to manually check calculations in all recent publications
• Added a warning note to their website about potential errors in specific data tables
• Implemented a secondary calculation process using different software to verify results before releasing new findings
• Developed a tracking system to document which projects used the problematic software version

These measures contained the impact while allowing the team to thoroughly investigate why the software was producing errors.

D4: Identify and Verify Root Causes

The fourth discipline focuses on identifying the true underlying causes of the problem, not just its symptoms. Root cause analysis requires disciplined investigation and evidence-based verification to ensure that identified causes truly explain the problem. This critical step determines the success of subsequent corrective actions.

Teams begin by generating potential causes through structured brainstorming techniques such as fishbone diagrams (Ishikawa diagrams), 5-Why analysis, or fault tree analysis. These tools help organize thinking and ensure consideration of various factors that might contribute to the problem, including equipment, methods, materials, environment, measurement, and human factors.

Once potential causes are identified, teams collect and analyze data to verify which causes actually contribute to the problem. Verification might involve designed experiments, statistical analysis, simulation, or controlled testing. The goal is to establish clear cause-and-effect relationships supported by evidence, not assumptions.

The root cause analysis should distinguish between the actual root cause (the fundamental reason the problem exists), contributing causes (factors that enable or amplify the root cause), and trigger events (specific occurrences that activate the root cause). Understanding these distinctions helps teams develop more effective solutions.

Effective root cause verification requires objectivity and willingness to challenge assumptions. Teams should consider using blind testing, independent verification, or peer review to ensure their cause analysis isn’t influenced by preconceptions or biases. They should also document the evidence supporting identified root causes for later reference and knowledge sharing.

D5: Develop Permanent Corrective Actions

The fifth discipline focuses on developing solutions that will eliminate the identified root causes and prevent the problem from recurring. Unlike containment actions, which address symptoms temporarily, permanent corrective actions target fundamental causes for lasting improvement. This phase requires creativity, technical knowledge, and careful evaluation of potential solutions.

When developing corrective actions, teams should start by generating multiple potential solutions for each verified root cause. Brainstorming techniques, benchmarking against similar problems, and consulting technical experts can help generate diverse solution options. Teams should consider both proven approaches and innovative ideas that might offer better results.

Each potential solution should be evaluated against criteria such as effectiveness (how well it addresses the root cause), feasibility (whether it can be implemented with available resources), potential side effects, maintenance requirements, and cost-benefit ratio. The evaluation should also consider how well solutions align with organizational systems, culture, and long-term goals.

Solution selection should prioritize addressing root causes rather than symptoms. In some cases, a single comprehensive solution might address multiple root causes. In others, a combination of solutions might be necessary to fully resolve the problem. Teams should document the rationale for selected solutions, including how they expect the solutions to prevent recurrence.

Step 5 of 8D also involves planning the implementation of selected solutions. Teams should develop detailed action plans that specify what will be done, who will do it, when it will be completed, what resources are required, and how success will be measured. This planning sets the stage for effective implementation in subsequent phases.

Corrective action example

A university research department identified that inconsistent sample preparation procedures were causing variable results in their genomic studies. After identifying lack of standardized protocols and training as root causes, they developed these permanent corrective actions:

• Created detailed, step-by-step standard operating procedures with visual guides and checkpoints
• Implemented a computerized workflow system that guides technicians through each preparation step
• Developed a structured training program with competency verification for all laboratory staff
• Instituted periodic blind sample testing to verify consistency across technicians
• Redesigned the laboratory layout to reduce cross-contamination risks

These solutions directly addressed the root causes rather than simply adding more quality checks to catch errors after they occurred.

D6: Implement and Validate Corrective Actions

The sixth discipline involves putting permanent solutions into practice and confirming they effectively resolve the problem. This critical phase bridges the gap between planning and results, requiring careful management of implementation activities and rigorous validation of outcomes.

Implementation begins with communicating the planned changes to all stakeholders who will be affected or involved. Clear communication helps build understanding and support for the changes. Teams should explain what will change, why the changes are necessary, how they will be implemented, and what results are expected.

During implementation, teams should follow the action plan developed in D5, tracking progress against milestones and addressing any obstacles that arise. They should also document any modifications to the original plan, including the reasons for those adjustments. Thorough documentation creates a valuable record for future reference and organizational learning.

Once solutions are implemented, validation is essential to confirm they effectively address the root causes and resolve the problem. Validation should be data-driven, comparing performance measures before and after implementation to quantify improvements. Teams should define specific validation criteria in advance, including what data will be collected, how it will be analyzed, and what results will indicate success.

Validation should verify three key aspects: first, that the solutions were implemented as planned; second, that they effectively address the identified root causes; and third, that they resolve the original problem. If validation reveals gaps or shortcomings, teams should determine whether adjustments to the current solutions are needed or if additional root causes need to be addressed.

Throughout implementation and validation, teams should maintain the interim containment actions established in D3 until they have confirmed the permanent solutions are effective. Only then should containment measures be removed, following a controlled transition process to ensure continuous protection.

D7: Prevent Recurrence

The seventh discipline focuses on systemically preventing similar problems from occurring in the future. While D6 implements specific solutions for the current problem, D7 extends those learnings to related processes, products, or systems. This preventive approach helps organizations move from reactive problem solving to proactive improvement.

Prevention begins with identifying other areas where similar problems could occur. Teams should review related processes, products, or services that share characteristics with the problem area. For example, if a research protocol was improved to address contamination issues, similar protocols in other departments might benefit from the same improvements.

Once potential risk areas are identified, teams should determine what systemic changes could prevent similar problems across the organization. These might include updating standards or specifications, modifying procedures, implementing new controls, enhancing training programs, or improving design practices. The goal is to address underlying vulnerabilities in organizational systems, not just specific instances.

Prevention efforts should also include updating risk assessment tools and failure mode analyses to incorporate new knowledge gained through the problem-solving process. For example, Failure Mode and Effects Analysis (FMEA) documents might be revised to include newly identified failure modes and preventive measures.

Knowledge management plays a crucial role in prevention. Teams should document lessons learned, including insights about failure mechanisms, effective analytical approaches, and successful solutions. This knowledge should be shared through appropriate channels such as training materials, knowledge bases, or community of practice discussions.

Finally, prevention requires monitoring systems to detect early warning signs of potential recurrence. Teams should establish indicators that can signal when similar problems might be developing, allowing for early intervention before significant impacts occur.

D8: Recognize the Team and Close the Process

The eighth and final discipline marks the formal conclusion of the 8D process, celebrating team achievements and institutionalizing the knowledge gained. This phase acknowledges the team’s efforts, consolidates learning, and ensures appropriate handover of ongoing responsibilities.

Recognition begins with documenting the team’s accomplishments, including the problem solved, methods used, challenges overcome, and results achieved. This document should highlight both the technical outcomes (such as improved quality metrics or reduced costs) and process achievements (such as innovative approaches or effective collaboration).

Teams should hold a formal closing meeting to review the entire 8D process, discussing what went well and what could be improved in future problem-solving efforts. This reflection helps refine the organization’s approach to problem solving and builds institutional knowledge about effective methods.

Recognition of team members’ contributions is an essential aspect of D8. This might include formal acknowledgment from leadership, sharing success stories through organizational channels, or celebrating achievements through team events. Recognition reinforces the value of collaborative problem solving and encourages future participation in improvement efforts.

Before disbanding, the team should ensure proper handover of any ongoing responsibilities related to monitoring solutions, maintaining improvements, or implementing preventive measures in other areas. Clear assignment of these responsibilities helps ensure the sustainability of improvements and prevents the problem from gradually returning.

Finally, the team should compile a comprehensive final report that documents the entire 8D process. This report serves as a knowledge artifact for the organization, helping others learn from the experience and potentially apply similar approaches to different problems. The report should be stored in an accessible knowledge management system for future reference.

Recognition example

After successfully addressing data integrity issues in a multi-institutional research collaboration, the 8D team conducted these closing activities:

• Created a detailed case study documenting the problem, analysis methods, and solutions for the university’s knowledge repository
• Presented findings at a departmental seminar, highlighting improved research reliability metrics
• Received formal recognition from the research director in the annual report
• Held a retrospective session to identify lessons learned about cross-institutional problem solving
• Transitioned ongoing monitoring responsibilities to the data governance committee
• Shared their experience through a professional conference presentation

Common Challenges and Solutions in 8D Implementation

While the 8D methodology provides a structured approach to problem solving, organizations often encounter challenges when implementing it. Understanding these common obstacles and strategies to overcome them can help teams apply the methodology more effectively.

One frequent challenge is premature jumping to solutions before thoroughly identifying root causes. Teams eager to resolve issues quickly may implement fixes based on assumptions rather than evidence. To address this, organizations should emphasize the importance of discipline and patience in the problem-solving process. Training teams in root cause analysis techniques and establishing review gates between disciplines can prevent rushing to conclusions.

Another challenge involves difficulty forming effective cross-functional teams. Departmental silos, availability constraints, or expertise gaps can hamper team formation. Organizations can overcome this by developing flexible teaming approaches, creating problem-solving networks across departments, and training multiple people in critical skills to ensure backup capabilities.

Data collection and analysis present challenges for many teams, particularly when relevant information is scattered across systems or when specialized analytical skills are required. Developing standardized data collection templates, investing in training for basic statistical analysis, and creating relationships with internal or external analysis experts can strengthen this capability.

Sustaining improvements over time presents another common challenge. Without proper follow-through, even well-designed solutions may erode gradually. Establishing ownership for maintaining solutions, creating performance indicators to monitor continued effectiveness, and integrating improvements into regular management systems help ensure lasting results.

Finally, organizations sometimes struggle to build problem-solving capability across the workforce. Inconsistent application of methods or reliance on a few expert problem solvers limits organizational resilience. Developing a comprehensive training program, creating communities of practice around problem solving, and incorporating 8D concepts into everyday work processes can build broader capability.

Integrating 8D with Other Methodologies

The 8D methodology doesn’t exist in isolation. It can be enhanced by integrating it with other problem-solving and improvement approaches. Understanding these complementary methodologies helps organizations create a more comprehensive problem-solving toolkit.

Six Sigma offers powerful statistical tools that strengthen the data analysis components of 8D, particularly during root cause analysis and solution validation. The DMAIC (Define, Measure, Analyze, Improve, Control) framework of Six Sigma aligns well with the 8D process, with DMAIC’s statistical rigor complementing 8D’s team-based approach. Organizations can incorporate Six Sigma analytical tools such as hypothesis testing, design of experiments, or regression analysis into relevant 8D steps.

Lean methodology contributes valuable concepts around waste elimination and flow that enhance 8D implementation. Lean tools such as value stream mapping help teams understand the broader process context of problems, while concepts like standard work support consistent implementation of solutions. The Lean focus on respect for people also reinforces the team-based nature of 8D.

Root Cause Analysis (RCA) methodologies like Kepner-Tregoe problem analysis or Apollo Root Cause Analysis provide structured approaches that strengthen the D4 phase of 8D. These methodologies offer detailed frameworks for distinguishing between true causes and symptoms, complementing 8D’s broader process.

Project management practices enhance 8D implementation, particularly for complex problems requiring significant resources or coordination. Applying project management tools for planning, resource allocation, and tracking helps teams execute the 8D process more effectively, especially during implementation phases.

Knowledge management systems support the learning and prevention aspects of 8D. By capturing problem-solving experiences, solutions, and lessons learned in accessible knowledge bases, organizations amplify the value of each 8D project and accelerate future problem solving.

When integrating these methodologies, organizations should focus on selecting complementary elements that address specific needs rather than creating overly complex hybrid approaches. The goal is to enhance 8D’s effectiveness without losing its fundamental structure and accessibility.

8D Tools and Templates

Effective implementation of the 8D methodology is supported by various tools and templates that guide teams through each discipline. These resources help standardize the process, ensure thoroughness, and document progress. Here we explore essential tools for each phase of the 8D process.

For team formation (D1), role assignment matrices help clarify responsibilities and ensure appropriate expertise is included. Team charters define the problem scope, team authority, and operating guidelines. Communication plans outline how team members will share information and coordinate activities.

Problem definition (D2) benefits from tools such as the Is/Is Not matrix, which helps bound the problem by clarifying what is and isn’t included in its scope. Problem statements templates ensure comprehensive description, while data collection plans guide the gathering of relevant information. Timeline tools help establish problem history and patterns.

Root cause analysis (D4) draws on a rich toolkit including fishbone diagrams for categorizing potential causes, 5-Why templates for drilling down to fundamental issues, and cause-and-effect matrices for evaluating relationships between variables. Statistical analysis tools help teams distinguish correlation from causation when analyzing data.

Solution development and implementation (D5-D6) utilize decision matrices to evaluate potential solutions against criteria, implementation planning templates to organize actions, and RACI charts (Responsible, Accountable, Consulted, Informed) to clarify implementation roles. Validation plans outline how solutions will be tested, while before/after comparison tools document improvements.

Prevention (D7) employs tools such as Failure Mode and Effects Analysis (FMEA) to identify potential future issues, standardization templates to document improved methods, and control plans to maintain improvements. Knowledge mapping tools help identify where learnings should be applied across the organization.

Documentation throughout the process benefits from 8D report templates that capture information from all disciplines in a standardized format. These reports serve as both working documents during the process and historical records after completion. Electronic 8D systems can further enhance documentation by providing structured workflows, automatic notifications, and searchable records.

8D Problem Solving in Different Contexts

The 8D methodology demonstrates remarkable adaptability across different industries and contexts. Understanding how the approach can be tailored to specific environments helps organizations implement it more effectively for their unique challenges.

In manufacturing environments, 8D typically focuses on product quality, equipment reliability, and process stability. Teams often integrate 8D with quality management systems and production controls. The methodology works particularly well for addressing specific defects, customer complaints, or process deviations, with solutions often involving equipment modifications, process standardization, or material specifications.

Service organizations adapt 8D to address customer experience issues, service delivery problems, or operational inefficiencies. In these contexts, the methodology often places greater emphasis on procedural and human factors, with solutions frequently involving workflow redesign, communication improvements, or training enhancements. Service adaptations may simplify technical analysis aspects while expanding stakeholder communication components.

Healthcare applications of 8D focus on patient safety, treatment effectiveness, and operational efficiency. The methodology complements other healthcare improvement approaches such as root cause analysis for adverse events or plan-do-study-act cycles. Healthcare adaptations often incorporate considerations for regulatory compliance, evidence-based practice, and interdisciplinary collaboration across clinical and administrative functions.

Software development teams use 8D to address quality issues, system failures, or development process problems. The methodology adapts well to software contexts by incorporating testing procedures, code reviews, and development environment considerations. Teams often integrate 8D with agile development practices, using iterative approaches to implement and validate solutions.

Research and academic settings apply 8D to address experimental inconsistencies, methodology challenges, or collaborative research problems. These applications emphasize rigorous analysis and evidence-based validation, often expanding the root cause analysis phase to include literature reviews or theoretical evaluations. Academic adaptations may incorporate peer review processes and emphasize knowledge dissemination through publications or presentations.

Research application example

A multidisciplinary research center applied the 8D methodology to address inconsistent results in a climate modeling study:

• They formed a team including climate scientists, data analysts, and computational specialists (D1)
• They defined the problem as unexplained variations in model outputs when using identical input parameters (D2)
• As interim containment, they flagged potentially affected publications and paused submissions of new papers based on the model (D3)
• Root cause analysis revealed numerical instabilities triggered by certain parameter combinations and hardware-specific floating-point calculations (D4)
• They implemented algorithm improvements and standardized computational environments across research sites (D5-D6)
• They developed verification protocols for all climate models used by the center and created a shared knowledge base of numerical stability issues (D7)
• The team published their findings as a methods paper to benefit the broader research community (D8)
